Threaded Rebar Bolts

Product use:

Product Features:

7/8-9UNC:Grade 60Yield Strength 27.700lbs (123 kN)Tensile Strength 41.600lbs 185kN)Thread length shown s standard and can offer different different lengths.

Classification:

Product Center

Contat Us

Inquiry

Product Details

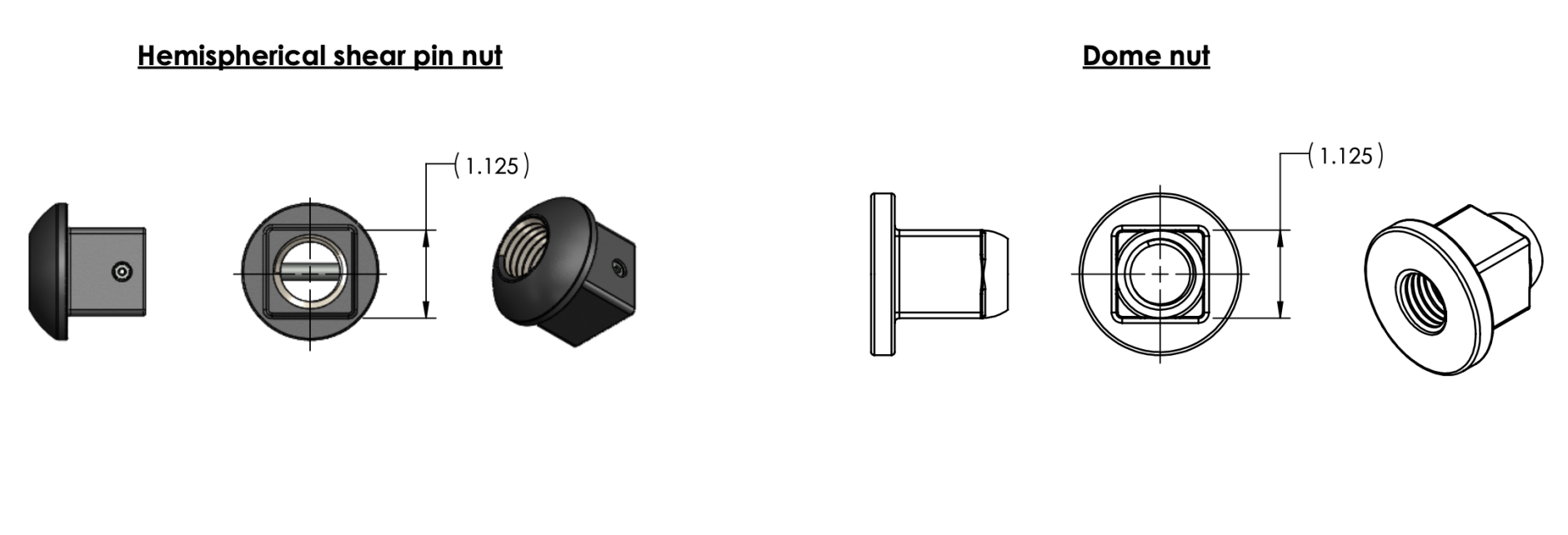

Assembly

Parameter

GRADE 60	#5 / 16M	#6 / 20M	#7 / 22M	#8 / 25M
Nominal Bar Size, inch	5/8"	3/4"	7/8"	1"
Nominal Bar Size, mm	16mm	20 mm	22mm	25mm
Yield Strength, Min., lb	13,600	20,000	27,700	36,400
Yield Strength, Min., KN	60	89	123	162
Tensile Strength, Min., lb	20,300	30,100	41,600	54,500
Tensile Strength, Min., KN	90	134	185	242
Thread Size (LHT and RHT)	5/8" - 11 UNC	3/4" - 10 UNC	7/8" - 9 UNC	1" - 8 UNC
Elongation minimum	9%
