Cable Bolts

Product use:

Product Features:

Uncoated 7 wire strand Grade 270K ( 270,000psi, 1861Mpa Ultimate strength ) Specification ASTM A416,CSA G279-75,CSA G279-M1985.

Classification:

Product Center

Product Details

Single Bulbed Cable with Fish Hook

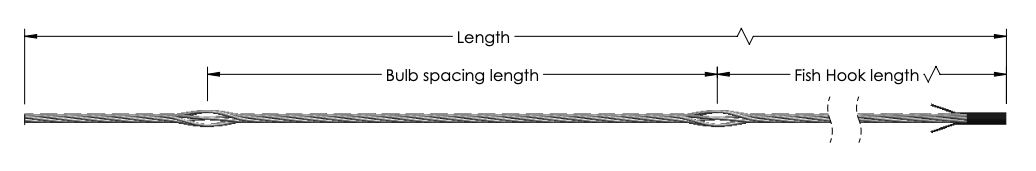

Double Bulbed Cable with Fish Hook

Specifications

● Uncoated 7 wire strand

● Grade 270K (270,000psi, 1861Mpa Ultimate strength)

● Specifications ASTM A416, CSA G279-75, G279-M1985

Parameter

Cable Nominal Diameter	Breaking strength	1% Extension under load	Elongation in 24"	Relaxation after 1000hrs
0.5" Cable Bolt (+0.026/-0.006) 12.70mm (+.66/-.15mm)	41,300lbs (183.7 kN)	37,170lbs (165.3kN)	3.5% Minimum	Maximum 2.5% with intial load - 70% breaking strength Maximum 3.5% with intial load - 80% breaking strength
0.6" Cable Bolt (+0.026/-0.006) 15.24mm (+.66/-.15mm)	58,600lbs (260.6 kN)	52,740lbs (234.5kN)	3.5% Minimum	Maximum 2.5% with intial load - 70% breaking strength Maximum 3.5% with intial load - 80% breaking strength
0.7" Cable Bolt (+0.026/-0.006) 17.78mm (+.66/-.15mm)	76,200lbs (338.9 kN)	68,600lbs (305.1 kN)	3.5% Minimum	Maximum 2.5% with intial load - 70% breaking strength Maximum 3.5% with intial load - 80% breaking strength
